Abstract: In the project-based online SolidWorks course, I developed a conceptual design of an unmanned aerial vehicle, with a quadcopter drone configuration. This kind of lightweight drone is common among popular customers. This design is complete with a Carbon Fiber Reinforced Polymer (CFRP) exterior, Lithium Ion Batteries, blades, motors, flight control system and power distribution panel. This project helped me gain extensive design experience using SolidWorks as a tool, and multiplied my passion for UAV systems. The assembly along with individual parts are shown below.

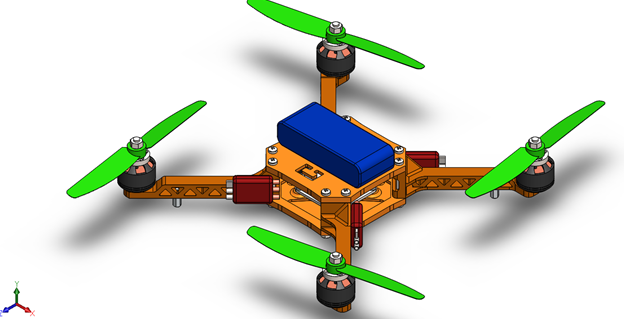

Figure 60. Isometric View of Quadcopter UAV Design Assembly

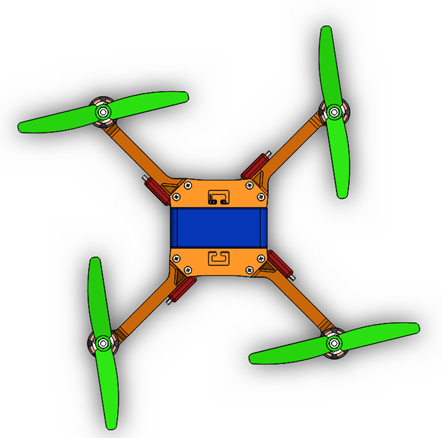

Figure 61. Top View of Quadcopter UAV Design

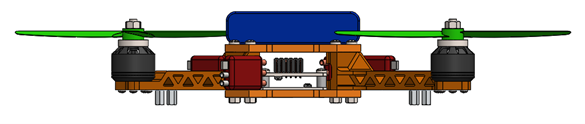

Figure 62. Side View of Quadcopter UAV Design

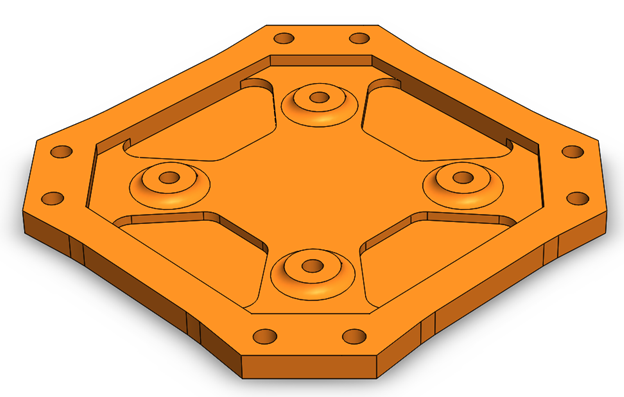

Figure 63. Spider Base Part

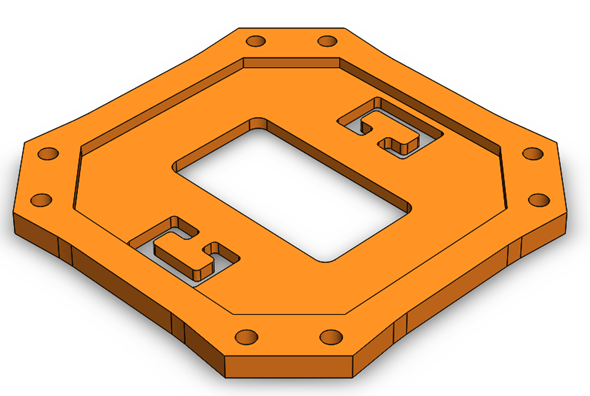

Figure 64. Spider Top

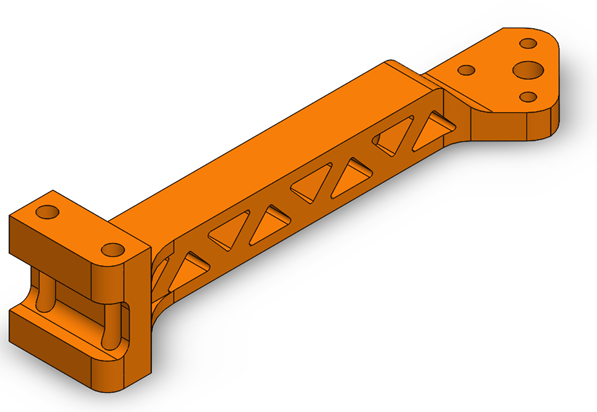

Figure 65. Spider Arm

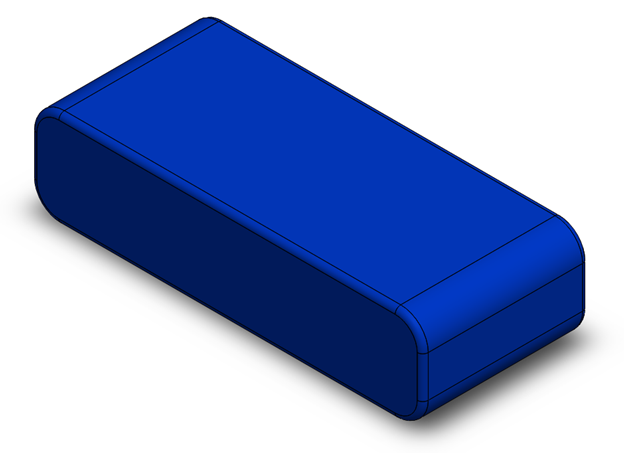

Figure 66. Battery

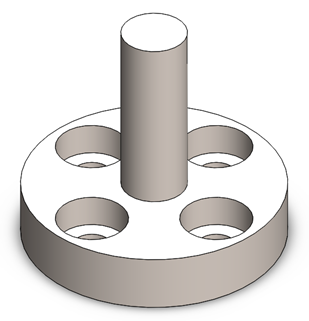

Figure 67. Spinner

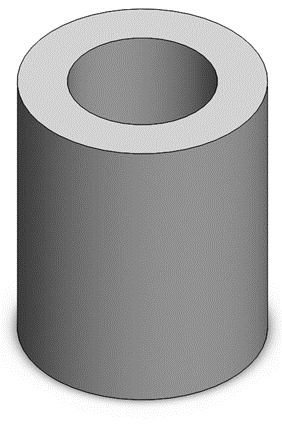

Figure 68. Spacer

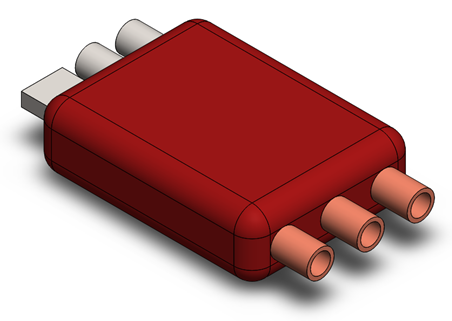

Figure 69. Electrical Connector

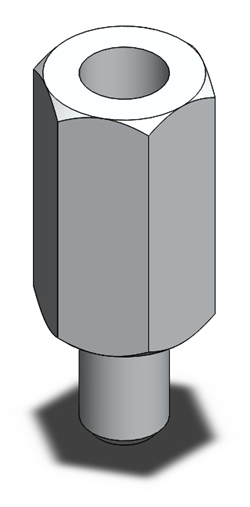

Figure 70. Pillar

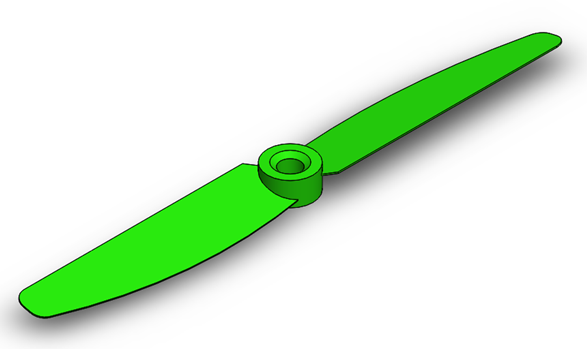

Figure 71. Motor Blade

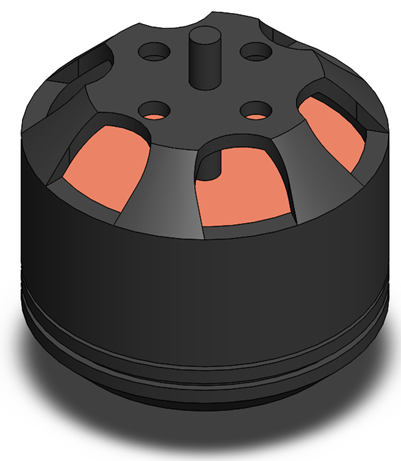

Figure 72. Motor

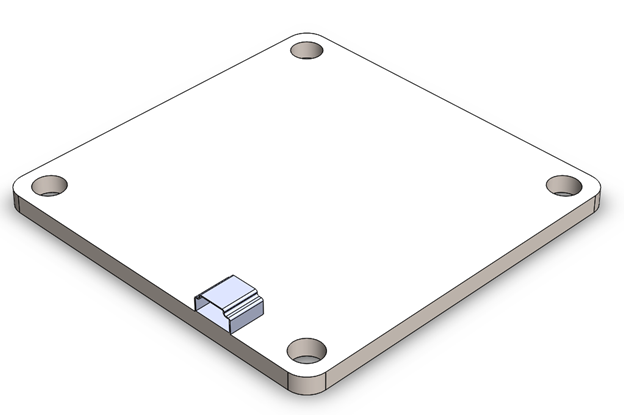

Figure 73. Distribution Board

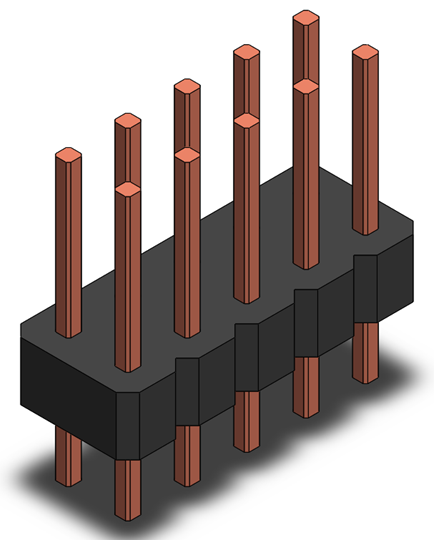

Figure 74. Electrical Unit 1

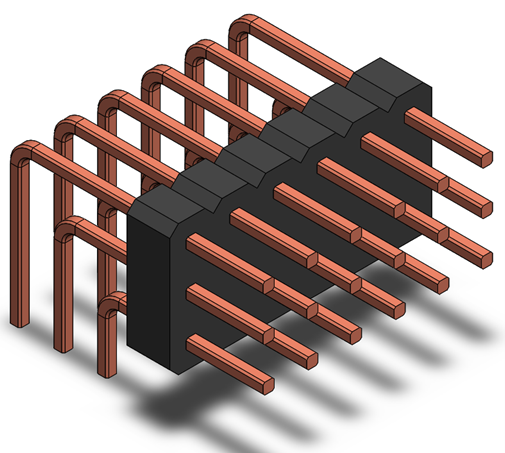

Figure 75. Electrical Unit 2
